سوتش





سوتش 4 بورت

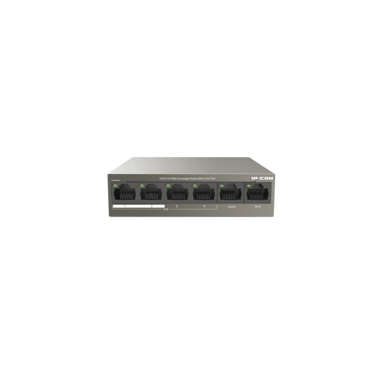

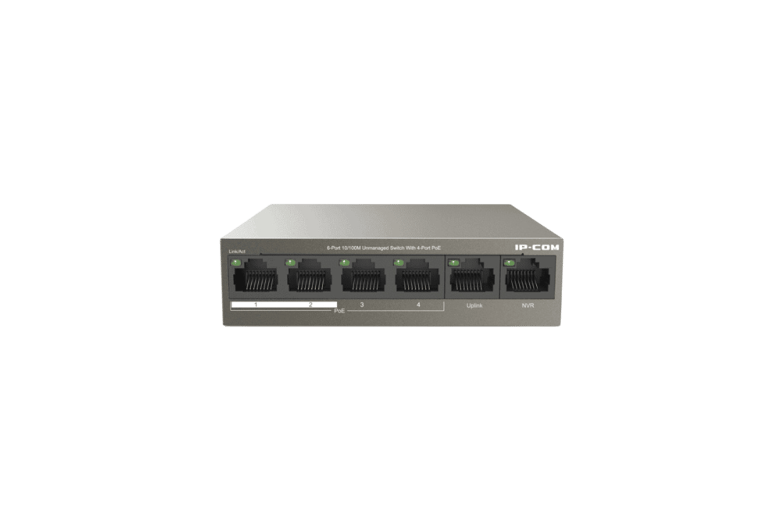

5-Port Gigabit Desktop Switch with 4-Port PoE
● Ports 1-4: IEEE 802.3af/at PoE ports
● 5 10/100/1000 Mbps Base-T RJ45 port
● Desktop size, Power Adapter Output 63W
● The maximum power output of each PoE port: 30 W maximum power output of the switch: 58 W
● Support One-Key VLAN, Port 1-4 will be isolated respectively but can communicate with the 5 port
سوتش 8 بورت

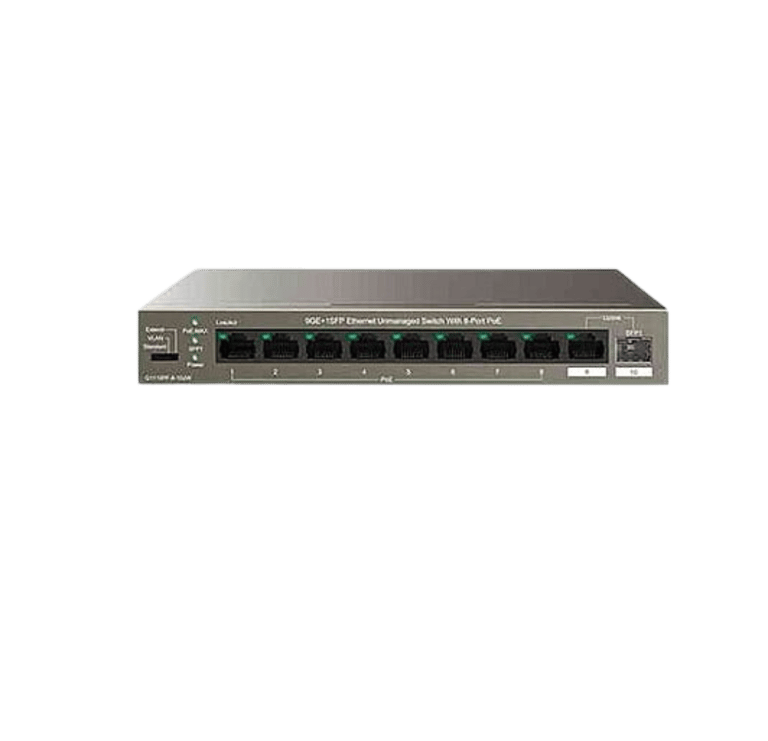

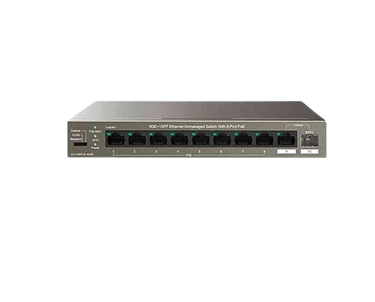

9-port 100 PoE Switches
● 9 x 10/100Base-TX Ethernet ports
● Support 250 meters for long-distance transmission
● Support port and power supply 6KV lightning protection
● Ports 1-8 support IEEE802.3af/at standard PoE power supply
● The maximum power supply of a single port is 30W, and the total power supply of the whole machine is 58W


سوتش 16 بورت

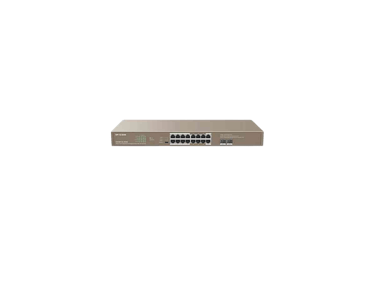

16FE+2GE/1SFP Unmanaged Switch With 16-Port PoE
Ports: 16* 10/100 Mbps RJ45 ports (PoE), 2* 10/100/1000 Mbps RJ45 ports, 1* 1000 Mbps combo SFP
Compliance: IEEE 802.3, 802.3u, 802.3ab, 802.3z, 802.3x, 802.3af/at
MAC Table: 4K auto-learning MAC address
Power Consumption: 30W per port, 150W max for switch
Bandwidth: 7.2 Gbps backplane
Cache Size: 2.75 Mb for video surveillance
Modes: Standard, priority, extend, VLAN
Mounting: Desktop and rack


سوتش 24 بورت
L3 Managed PoE Switch
Comply with IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x,
IEEE 802.1p, IEEE 802.1q, IEEE 802.1w, IEEE 802.1d, IEEE 802.1s, IEEE 802.3af/at
standards
24 x 10/100/1000 Base-T Ethernet ports (Data/Power), 4 separate 1000 Base-X
SFP ports
16 K MAC address table and MAC address auto-learning
Maximum PoE output power of a single port: 30 W, maximum PoE output power
of the whole switch: 370 W
Supports abundant services, such as static routing, VLAN, IGMP, QoS, ACL, DHCP
Snooping, ARP and Telnet
Built-in 6 kV professional lightning protection power, 19 inch/1 u standard
rack-mounted design
