اكوافوكس

انتركم اكوافوكس فيديو

Indoor Monitor

● Support RS485.

● 800 x 480 resolution.

● 7" capacitive touch screen.

● 8 channel inputs & 1 embedded relay.

● Dimensions: 200.2 x 132.2 x 27.2 mm.

جرس اكوافوكس فيديو

Door Phone

● One call button.

● Microphone & speaker.

● Mobile App compatible.

● RF card reader: 13.56MHz.

● Integrated with any SIP device.

Accessories

• On-Wall Mounting Bracket

• On-Wall Mounting Rain Cover

  _____________________________________________________________________

  Door Entry Feature

  • Relays controlled individually by DTMF tones

  • Camera permanently operational

  • Auto-night mode with LED illumination

  • White balance: auto

  • Minimum illumination: 0.1LUX

  Application Scenario

  • Apartment/flat intercom with door access control

  • Remote site entry over Internet

سماعة داخلي اكوافوكس

SIP Phone

● 2 SIP accounts.

● Call logs: Max. 600 records.

● Support 10 speed dial keys.

● Support PoE (IEEE 802.3af).

● Support Handset / Hands-free mode.

● Support Direct Station Selection (DSS) Key.

Physical & Power

• Installation: Wall-mounted & Desktop

• Dimension: 216.2x63.1x53 mm

• Working Humidity: 10~90%

• Working Temperature: -10°C ~ +45°C

• Storage Temperature: -20°C ~ +70°C

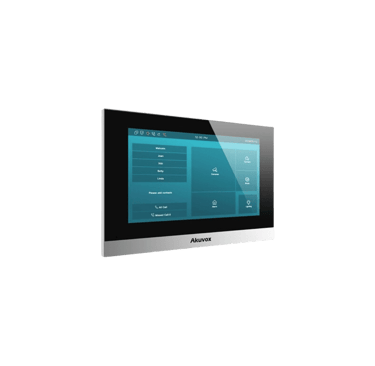

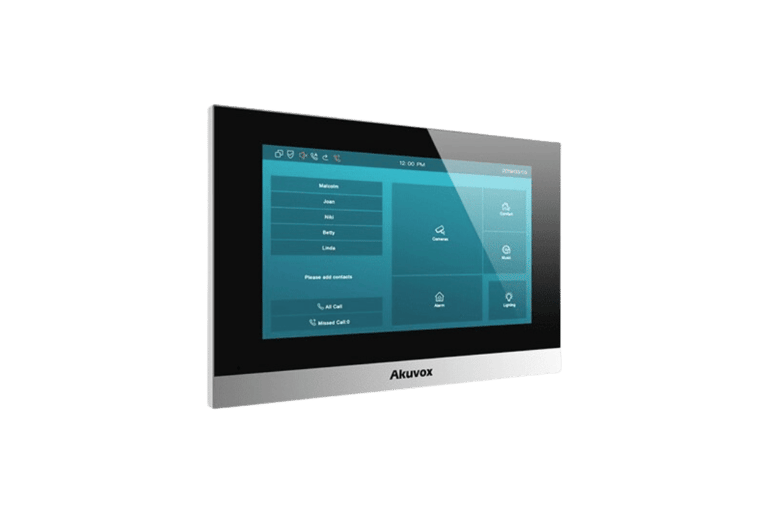

شاشة اكوافوكس فيديو 7 انش

Indoor Monitor

● Linux OS.

● Supports RS485.

● 1024 x 600 Resolution.

● 7” Capacitive touch screen.

● Dimensions: 216.4 x 118.8 x 21.7 mm.

Accessories

• S562 Desktop Stand

• S562 On-Wall Mounting Stand

• S562 Surface Mount Angle

• S562 Desktop Bracket

  ________________________________________________________

  Physical & Power

  • Front panel: Plastic

  • RAM/ ROM:128MB / 128MB

  • Display: 7 Inch TFT LCD 1024x600 resolution

  • Screen: 7 lnch capacitive touch screen

  • RS485 port: Support

  • Relay out: 1

  • Bell in: 1

  • l/0: 8

  • Microphone: -42dB

  • Speaker: 4Ω /2w

  • Ethernet ports: 2xRJ45, 10/10OMbps adaptive

  • 802.3af Power-over-Ethernet

  • 12V DC connector (if not using PoE)

  • Installation: Wall-mounted & Desktop

  • Dimension: 216.4x118.8x21 . 7mm

  • Working Humidity: 10~90%

  • Working Temperature: -10°C~ +45°C

  • Storage Temperature: -20°C~ +70°C

جرس اكوافوكس فيديو مؤجرين

Akuvox Video Doorphone R20BX Series – Your Ultimate Security Solution

Enhance your facility's security with the Akuvox R20BX Video Doorphone series. Featuring a durable aluminum alloy front panel, this device combines functionality, durability, and modern design.

Key Features:

• Camera: 2MP with automatic lighting

• Wide-Angle View: 110º (H), 58º (V)

• Direct Call Buttons: Up to 5 customizable buttons with name plates

• Connectivity: PoE (802.3af) and Ethernet RJ45, 10/100Mbps adaptive

• Audio Communication: Two-way IP communication with Echo Cancellation

• Integration: SIP standard and ONVIF compliant

• Smart Sensors: Light and infrared sensors supported

• RF Card Reader: 13.56MHz & 125kHz

• Weatherproof: IP65-rated for water and dust resistance
